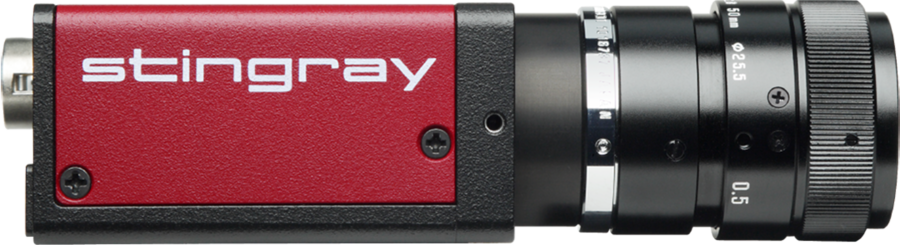

Stingray F-201
技术参数
| 接口 | IEEE 1394b - 800 Mb/s, 2 ports, daisy chain |
|---|---|
| 分辨率 | 1624 (H) × 1234 (V) |
| 传感器 | Sony ICX274 |
| 传感器类型 | CCD Progressive |
| 传感器尺寸 | Type 1/1.8 |
| 像元尺寸 | 4.4 µm × 4.4 µm |
| 标准镜头接口 | C-Mount |
| 最大满帧帧率 | 14 fps |
| ADC | 14 Bit |
| 缓存 (RAM) | Up to 128 MByte |
| 非易失性内存 (Flash) | 256 KByte (for selected models only) |
成像性能数据是基于欧洲机器视觉协会（EMVA）1288发布的3.1版图像传感器和像机特征描述标准中的评估方法。测量值是在没有光学滤波片的全分辨率下，测量单色模型的典型值。请联系销售或工程师了解更多信息。
| 在波长为529nm下，量子转换效率 | 49 % |
|---|---|
| 暗噪声 | 6.6 eˉ |
| 饱和电子数 | 7100 eˉ |
| 动态范围 | 60.2 dB |
| 绝对灵敏度阈值 | 7.1 eˉ |
| Bit位数 | 8-14 Bit |
|---|---|
| 黑白像素格式 | Mono8, Mono12, Mono16 |
| 原始像素格式 | Raw8, Raw12, Raw16 |
| 工作温度 | +5 °C to +45 °C |
|---|---|
| 电源要求 (DC) | 8 V to 36 V |
| 功耗 | <4 W (@ 12 VDC) |
| 重量 | 92 g |
| 尺寸 (L × W × H in mm) | 72.9 × 44 × 29 (including connectors) |
| 符合规范 | CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B |
- High SNR mode (up to 24 dB better signal-to-noise ratio)
- Low-noise binning mode
- Shading correction
- Defect pixel correction
- AOI, separate AOI for auto features
- Binning
- Sub-sampling
- Auto gain (manual gain control: 0 to 24.4 dB)
- Auto exposure (48 µs to 67 s)
- Auto white balance
- Look-up table (LUT)
- Hue, saturation
- Color correction
- Local color anti-aliasing
- Reverse X/Y
- Deferred image transport
- Trigger programmable, level, single, bulk, programmable delay
- Sequence mode (changes the camera settings on the fly)
- SIS (secure image signature, time stamp for trigger, frame count etc.)
- Storable user sets
- Non-volatile memory 256 KByte (for selected models only)
发货方式
- 相机和1394b数据线一套（特殊要求除外）
The Stingray is a high performance UXGA (2 Megapixel) IEEE 1394b camera with excellent image quality. Amongst others, this camera is suitable for:
- Industrial inspection and automation
- Logistics
- Science and research
- Intelligent traffic systems
- Healthcare and medical (white housing available)
- Multimedia, entertainment and sports
- ... and many more
Additionally, it is ideally suited for:
- Demanding OEM camera applications (board level versions with separate sensor board available on request)
- Daisy chaining (two copper connectors)
3D CAD 文件 (STEP)
请右键点击3D 模型连接，选择“保存”开始下载并解压 STEP 文件。您需要安装 3D CAD 查看器应用程序来查看和测量 STEP 文件。下载免费的 STEP 查看器： https://www.freecadweb.org.
