Alvium G5

轻松升级,尽享超前性能

Alvium G5是尺寸小巧的方糖型5千兆网相机。
受益于更高的带宽和轻松的移植!

了解更多



Alvium G5 - 轻松升级,尽享超前性能

适用于高需求应用的5千兆网相机

Alvium G5 系列相机兼具 5GigE 接口的技术优势和 Alvium 平台应用的灵活性。该产品具备 GigE Vision 标准的所有优势,同时能够针对高分辨率和帧率要求应用提供更高的带宽。Alvium G5 系列相机支持基于现有系统(USB3 Vision或1GigEVision)的升级,并后向兼容1GigE 解决方案。方糖尺寸的 Alvium G5 相机基于 ALVIUM® 技术打造,能够以超低能耗提供超高画质。



优势概览





Alvium G5是一款高性能5GigE 视觉相机。



  • 速度选项:支持可变链路速度转换(1G、2.5G、5G)

  • 性能更强劲: 带宽比 GigE 高出4.2倍

  • 超小尺寸: 尺寸小巧的方糖型5GigE 相机

  • 灵活升级: 能够基于现有 GigE 或 USB 解决方案轻松升级

  • 高性能传感器: 11款 Sony IMX 传感器可选

  • 工业级硬件: 紧凑型外壳,硬件符合工业标准

功能特性

  • 分辨率: 高达2460万像素
  • 传感器: Sony 或安森美CMOS 全局和卷帘快门传感器
  • 帧率: 高达691帧/秒
  • 外壳: 全封闭式外壳 (60 mm × 29 mm × 29 mm)
  • 镜头接口: C-Mount, CS-Mount, 或 S-Mount (M12)
  • 成像颜色: 黑白和彩色(UV,NIR 和 SWIR型号即将发布)
  • 工作温度: -20°C 到 +60°C
Dynamic autofocus for varying distances

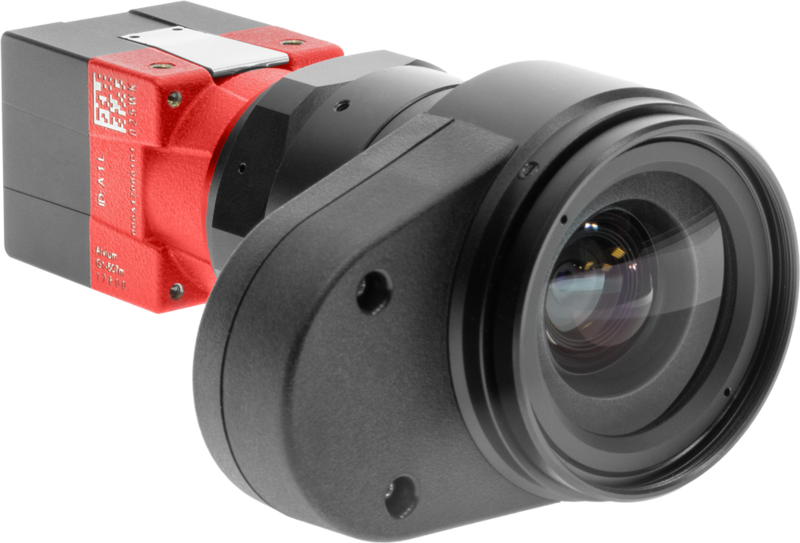

Liquid Lens Module







Allied Vision has teamed up withOptotune to enable customers to benefit from the advantages of liquid lens functions. Allied Vision’s compact and flexible Alvium GigE Vision (Alvium G1, Alvium G5) and USB3 Vision (Alvium U) cameras and liquid lenses from Optotune make a perfect team. Allied Vision cameras not only support the liquid lens functionality, but Allied Vision also completes the package with a Y-cable connecting the IO port of the camera with the lens and external power for the lens.

Benefits for the customer:

  • Ability to dynamically adjust focus
  • Rapid and precise imaging even at changing distances;
  • Flexibility in applications where objects are moving quickly
  • Remaining signals from the IO port are available to the M12 connector
  • No need for external autofocus algorithm or external drivers to operate the lens
  • Y-cable connecting the IO port of the camera with the lens and external power for the lens available

适用于所有应用的配件

我们提供各种工业级配件,以便完美适配您的应用。 请点击下方按钮,查看其兼容的镜头、接口、I/O 接口及三脚架适配器。

查看配件



功能强大的软件确保完美的连接性

您是否听说过 Vimba X,我们新一代兼容 GenICam 的软件开发包(SDK)?



通过我们的这一内部软件,您可以将我们的相机轻松集成到任何系统中,实现集中管理。

Vimba X可在Windows 10和11、Linux、Linux ARM和macOS(64位)上运行。通过 Vimba,您可以即时完成图像采集和 Allied Vision 相机控制、编写复杂的视觉应用程序或连接第三方库等功能。



进一步了解 Vimba X
