Nerian 3D stereo vision technology for machine vision
Nerian SceneScan

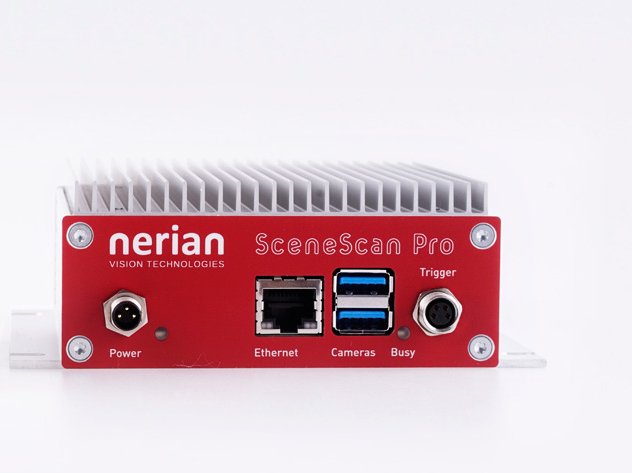

Nerian SceneScan provides accurate 3D perception even under difficult conditions, such as bright daylight, long range measurements, overlapping ranges, or even underwater measurements. Two different models are available: SceneScan and SceneScan Pro. Both models provide identical features but differ in their processing capacity.

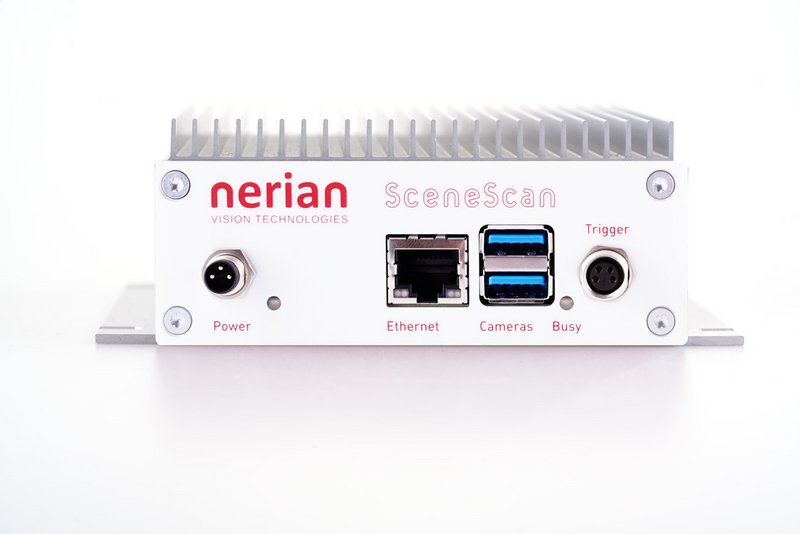

SceneScan is a cost-optimized version for applications with less demanding requirements.
- Supported image types: Monochrome
- Max. greyscale resolution: 0.5 MP
- Max. disparity: 128 Pixel
- Max. frame rate: 45 fps

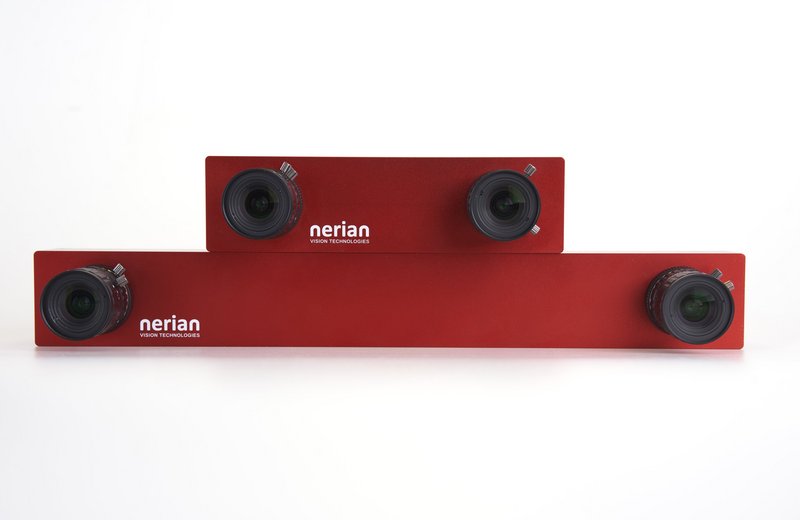

3D stereo camera Karmin3
Karmin3 has been especially developed for easy use with Nerian SceneScan stereo vision sensor. In combination with SceneScan, Karmin3 becomes a fully featured 3D depth camera, which enables highly accurate distance measurements even in bright ambient light and over long distances.
The stereo camera is available with two different baseline distances in order to meet the various measurement requirements:
- 5 cm baseline distance for 3D depth measurement at near range
- 25 cm baseline distance for better depth resolution at larger distances.
