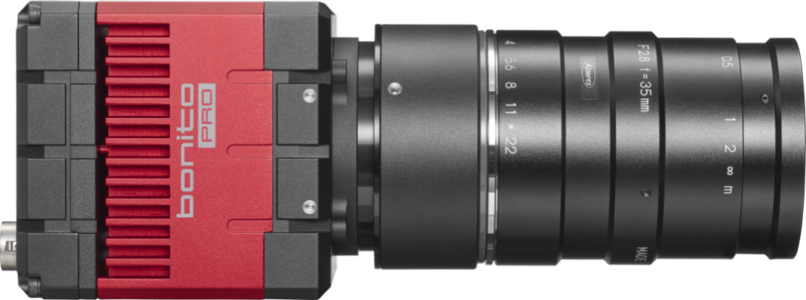

Bonito PRO X-2620
技术参数
| 接口 | CoaXPress (CXP-6) 4 DIN |
|---|---|
| 分辨率 | 5120 (H) × 5120 (V) |
| 传感器 | ON Semi PYTHON 25K |
| 传感器类型 | CMOS |
| 传感器尺寸 | Type APS-H |
| 像元尺寸 | 4.5 µm × 4.5 µm |
| 快门种类 | GS (Global shutter) |
| Lens mounts (available) | F-Mount, F-Mount PA, EF-Mount PA, M42-Mount, M42-Mount PA, M58-Mount, M58-Mount PA |
| 最大满帧帧率 | 79.7 fps |
| ADC | 10 Bit |
| 非易失性内存 (Flash) | 1024 KB |
Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured without optical filter.
| 在波长为529nm下，量子转换效率 | 55 % |
|---|---|
| 暗噪声 | 14.7 eˉ |
| 饱和电子数 | 8100 eˉ |
| 动态范围 | 54.4 dB |
| 绝对灵敏度阈值 | 15.5 eˉ |
| Bit位数 | 10 Bit |
|---|---|
| 黑白像素格式 | Mono8, Mono10 |
| 原始像素格式 | BayerRG8, BayerRG10 |
| 工作温度 | -20 °C to +70 °C housing (without condensation) |
|---|---|
| 电源要求 (DC) | 24 VDC; PoCXP |
| 功耗 | External power: 15 W at 24 VDC | Power over CoaXPress: 15 W |
| 重量 | 500 g (with F-Mount) |
| 尺寸 (L × W × H in mm) | 114.9 × 70 × 70 (with F-Mount and connectors) |
| 符合规范 | CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-3 (B) |
Image optimization features:
- Auto gain (manual gain control: 0 to 22 dB)
- Auto exposure (manual exposure control: 1 µs to 1 s)
- Auto white balance (X-2620C only)
- Binning (horizontal and/or vertical), (sum or average)
- Decimation X/Y
- Gamma correction
- Look-up tables
- Defect Pixel Correction
- Fixed Pattern Noise Correction
Camera control features:
- Multiple region of interest
- Sequencer Control
- Trigger over CoaXPress
- EF lens control (order option -18)
- Storable user sets
- Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
- Temperature monitoring (main board and sensor board)
Bonito PRO X-2620 is ideal for a wide range of applications including:
- Automated Optical Inspection of flat panel displays, PCB/electronics, printings
- 2D/3D Surface Inspection (for example, glass)
- Aerial imaging
