常规
| 型号: | Alecs G1-510 NA8 |
| 产品系列: | Alecs |
| 状态: | Available |
传感器
| 传感器类型: | Area scan |
| 色度: | Color, Mono |
| 光谱: | Visible |
| 光谱范围: | 300 nm to 1100 nm |
| 分辨率: | 2,464 × 2,064 (5.10 MP) |
| 传感器型号: | Sony IMX548 |
| 传感器架构（材料）: | cmos |
| 快门类型: | Global shutter (GS) |
| 传感器尺寸: | 6.8 × 5.7 mm (8.8 mm, Type 1/1.8) |
| 像素尺寸: | 2.74 µm × 2.74 µm |
像素格式
| 传感器位深度: | 12-bit |
| 单色像素格式: | GREY, RAW10, RAW12, RAW8, Y10, Y12 |
| YUV像素格式: | UYVY, YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr, YUV422 8-bit |
| RGB像素格式: | BGR8, RGB3, RGB8 (default), RGB888 (default) |
| 拜耳像素格式: | BayerRG12 |
成像性能
| 量子效率 @ 529 nm: | 68 % |
时序与增益
| 最大帧率: | 81 fps |
| 曝光时间: | 8 µs to 10 s |
| 增益: | 0.0 dB to 48.0 dB |
I/O与电源
| 光电隔离线路: | 2 inputs, 2 outputs, 1 trigger input, 1 strobe output |
| 电源供应: | 24 VDC |
| 功耗: | SoM: Max. 10 W to 25 W | Carrier board: Max. 2.0 W | Camera: Max. 2.8 W || Idle state: 8.5 W |
工作条件
| 工作温度（外壳: | -20 °C to 65 °C ((housing)) |
机械特性
| 机身尺寸（L x W x H mm）: | 102 × 72 × 112 |
| 镜头接口: | C-Mount |
| 重量: | 810 g |
板载内存与FPGA
| 图像缓存（RAM）: | 256 KByte |
| 非易失性存储器（闪存）: | 1024 KByte |
接口
| 数字接口: | IEEE 802.3 1000BASE-T |

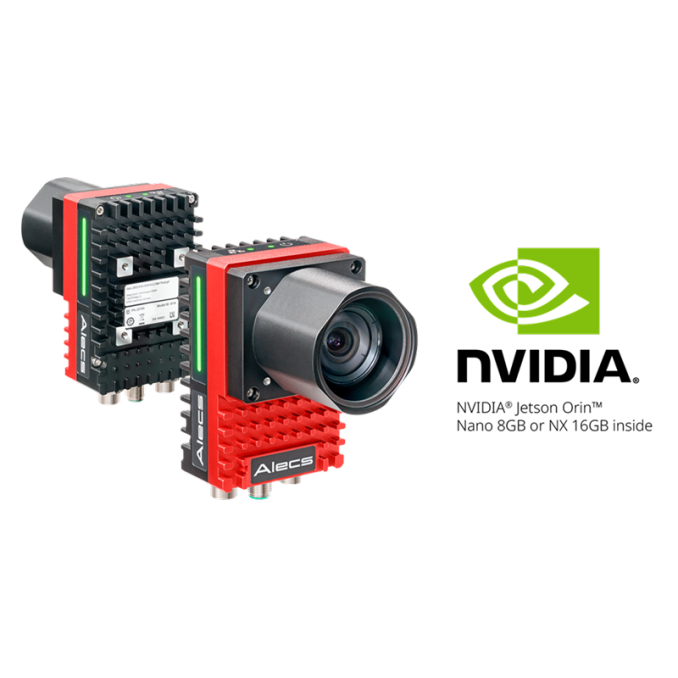

Alecs G1-510 NA8
Embedded vision CSI-2 camera with IMX548 sensor
| 分辨率 | 2,464 × 2,064 (5.10 MP) |
|---|---|
| 帧率 | 81 fps |
| 数字接口 | IEEE 802.3 1000BASE-T |
Alecs G1-510 innovative vision system with Sony IMX548 CMOS global shutter sensor enables developping applications faster. The NVIDIA® Jetson Orin™ Nano8 embedded board provides 8 GByte RAM, with power modes up to 25 W. Because this board has no DLA and PVA, all AI processing uses the host's CPU and GPU. Alecs G1 comes with 128 GByte NVMe storage, providing sufficient space for AI models, datasets, and application software.
