常规
| 型号: | Prosilica GT 6400 |
| 产品系列: | Prosilica GT |
| 状态: | Available |
传感器
| 传感器类型: | Area scan |
| 色度: | Mono or Color |
| 光谱: | Visible |
| 分辨率: | 6,480 × 4,852 (31.40 MP) |
| 传感器型号: | Sony IMX342 |
| 传感器架构（材料）: | CMOS |
| 快门类型: | Global Shutter |
| 传感器尺寸: | 28.4 mm ø (Type APS-C) |
| 像素尺寸: | 3.45 µm × 3.45 µm |
像素格式
| 传感器位深度: | 12-bit |
| 单色像素格式: | Mono8, Mono12Packed, Mono12 |
| YUV像素格式: | YUV411Packed, YUV422Packed, YUV444Packed |
| RGB像素格式: | RGB8Packed, BGR8Packed |
| 拜耳像素格式: | BayerRG8, BayerRG12, BayerRG12Packed |
成像性能
| 量子效率 @ 529 nm: | 64 % |
时序与增益
| 最大帧率: | 3 fps |
I/O与电源
| 非电气隔离IO: | 1 input, 2 outputs |
| 特定非电气隔离IO: | 1 |
| 光电隔离线路: | 1 input, 2 outputs |
| 电源供应: | 7 to 25 VDC AUX or IEEE 802.3at Type 1 PoE |
| 功耗: | External power: 5.4 W at 12 VDC | Power over Ethernet: 6.7 W |
工作条件
| 工作温度（外壳: | -20 °C to 50 °C (housing (without condensation)) |
机械特性
| 机身尺寸（L x W x H mm）: | 96 × 66 × 53 |
| 重量: | 372 g |
板载内存与FPGA
| 图像缓存（RAM）: | 128 MByte |
| 非易失性存储器（闪存）: | 1024 KByte |
接口
| 数字接口: | IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) |

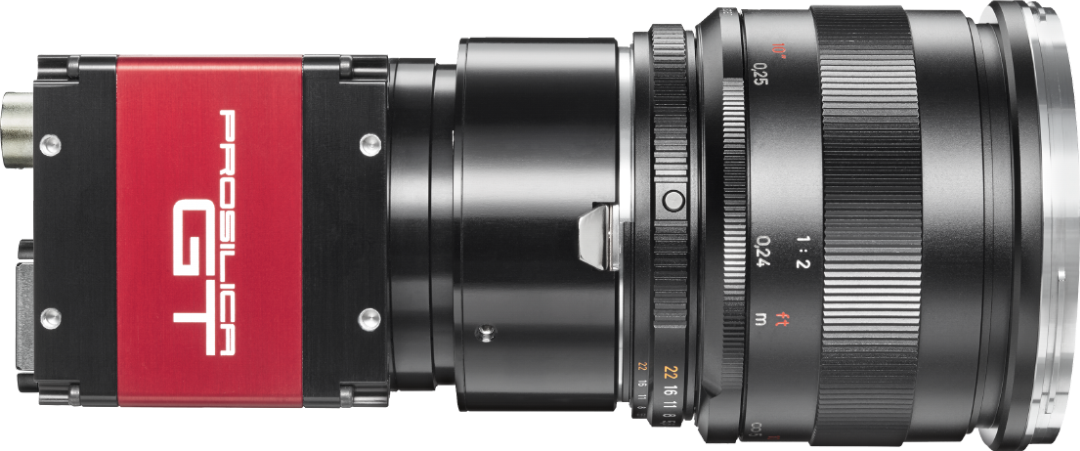

Prosilica GT 6400
31.4 megapixel machine vision camera with Sony IMX342 CMOS sensor
分辨率
6,480 × 4,852 (31.40 MP)
帧率
3 fps
数字接口
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Prosilica GT6400 is a large format camera equipped with a GigE Vision compliant Gigabit Ethernet port and Hirose I/O port. This camera incorporates the second generation Sony IMX342 Exmor CMOS sensor with Pregius global shutter technology. This sensor offers high quantum efficiency, high dynamic range ...
