常规
| 型号: | Prosilica GT 2050 |
| 产品系列: | Prosilica GT |
| 状态: | Available |
传感器
| 传感器类型: | Area scan |
| 色度: | Mono or Color |
| 光谱: | Visible |
| 分辨率: | 2,048 × 2,048 (4.20 MP) |
| 传感器型号: | CMOSIS/ams CMV4000 |
| 传感器架构（材料）: | CMOS |
| 快门类型: | Global Shutter |
| 传感器尺寸: | 16.3 mm ø (Type 1) |
| 像素尺寸: | 5.50 µm × 5.50 µm |
像素格式
| 传感器位深度: | 8-bit or 12-bit |
| 单色像素格式: | Mono8, Mono12, Mono12Packed |
| YUV像素格式: | YUV411Packed, YUV422Packed, YUV444Packed |
| RGB像素格式: | RGB8Packed, BGR8Packed, RGBA8Packed, BGRA8Packed |
| 拜耳像素格式: | BayerGB8, BayerGB12, BayerGB12Packed |
成像性能
| 量子效率 @ 529 nm: | 79 % |
时序与增益
| 最大帧率: | 28 |
I/O与电源
| 非电气隔离IO: | 1 input, 2 outputs |
| 特定非电气隔离IO: | 1 |
| 光电隔离线路: | 1 input, 2 outputs |
| 电源供应: | 7 to 25 VDC AUX or 802.3at Type 1 PoE |
| 功耗: | 3.5 W at 12 VDC; 4.3 W PoE |
工作条件
| 工作温度（外壳: | -20 °C to 65 °C ambient (without condensation) |
机械特性
| 机身尺寸（L x W x H mm）: | 86 × 53 × 33 |
| 重量: | 210 g |
板载内存与FPGA
| 图像缓存（RAM）: | 128 MByte |
| 非易失性存储器（闪存）: | 1024 KByte |
接口
| 数字接口: | IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) |

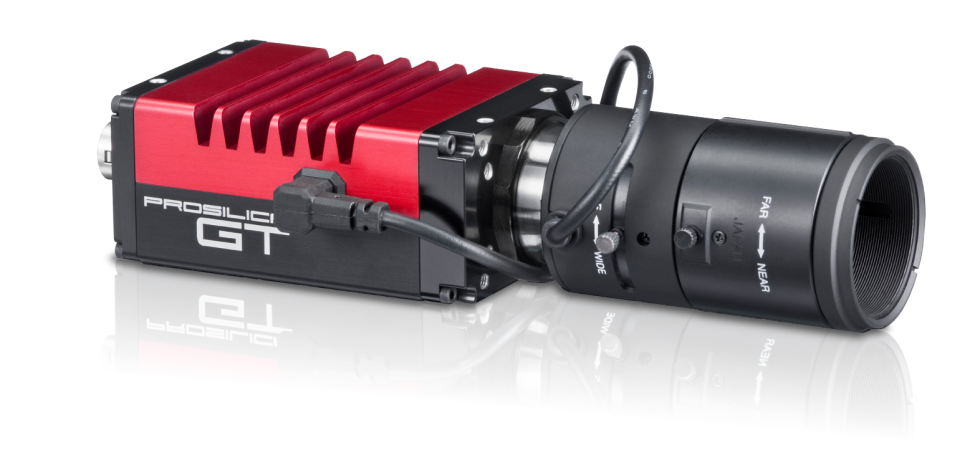

Prosilica GT 2050
4.2 megapixel machine vision camera with GigE Vision interface
分辨率
2,048 × 2,048 (4.20 MP)
帧率
28 fps
数字接口
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Prosilica GT2050 is a 4.2 megapixel camera with a GigE Vision compliant Gigabit Ethernet port and Hirose I/O port. Prosilica GT2050 is offered in both monochrome and color models. This camera incorporates the high quality CMOSIS/ams CMV4000 sensor.
