常规
| 型号: | Prosilica GT 2000 |
| 产品系列: | Prosilica GT |
| 状态: | Available |
传感器
| 传感器类型: | Area scan |
| 色度: | Mono or Color |
| 光谱: | Visible |
| 分辨率: | 2,048 × 1,088 (2.20 MP) |
| 传感器型号: | CMOSIS/ams CMV2000 |
| 快门类型: | Global Shutter |
| 传感器尺寸: | 12.75 mm ø (Type 2/3) |
| 像素尺寸: | 5.50 µm × 5.50 µm |
像素格式
| YUV像素格式: | YUV411Packed, YUV422Packed, YUV444Packed |
| RGB像素格式: | BGR8Packed, BGRA8Packed, RGB8Packed, RGBA8Packed |
| 拜耳像素格式: | BayerGB12, BayerGB12Packed, BayerGB8 |
成像性能
| 量子效率 @ 529 nm: | 75 % |
时序与增益
| 最大帧率: | 53 fps |
I/O与电源
| 非电气隔离IO: | 1 input, 2 outputs |
| 特定非电气隔离IO: | 1 |
| 光电隔离线路: | 1 input, 2 outputs |
| 电源供应: | 7 to 25 VDC AUX or 802.3at Type 1 PoE |
| 功耗: | 3.4 W at 12 VDC; 4.2 W PoE |
工作条件
| 工作温度（外壳: | -20 °C to 65 °C (ambient (without condensation)) |
机械特性
| 机身尺寸（L x W x H mm）: | 86 × 53 × 33 |
| 重量: | 210 g |
板载内存与FPGA
| 图像缓存（RAM）: | 128 MByte |
| 非易失性存储器（闪存）: | 1024 KByte |
接口
| 数字接口: | IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) |

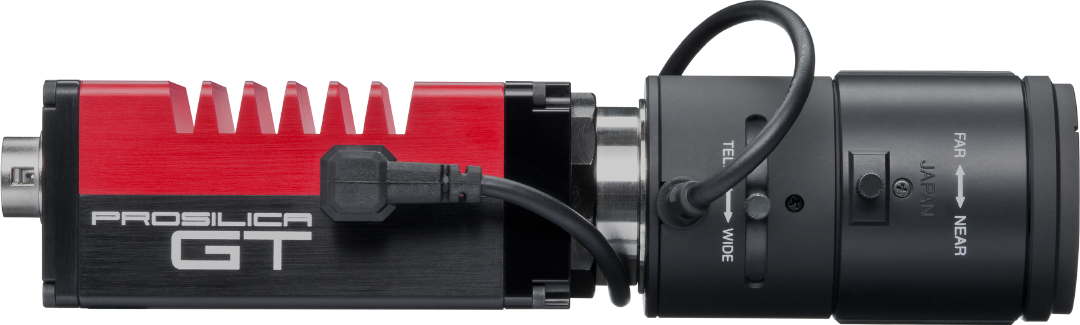

Prosilica GT 2000
2.2 megapixel machine vision camera for extreme environments
分辨率
2,048 × 1,088 (2.20 MP)
帧率
53 fps
数字接口
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Prosilica GT2000 is a 2.2 megapixel camera with a GigE Vision compliant Gigabit Ethernet port and Hirose I/O port. Prosilica GT2000 is offered in both monochrome and color models. This camera incorporates the high-quality CMOSIS/ams CMV2000 CMOS sensor.
