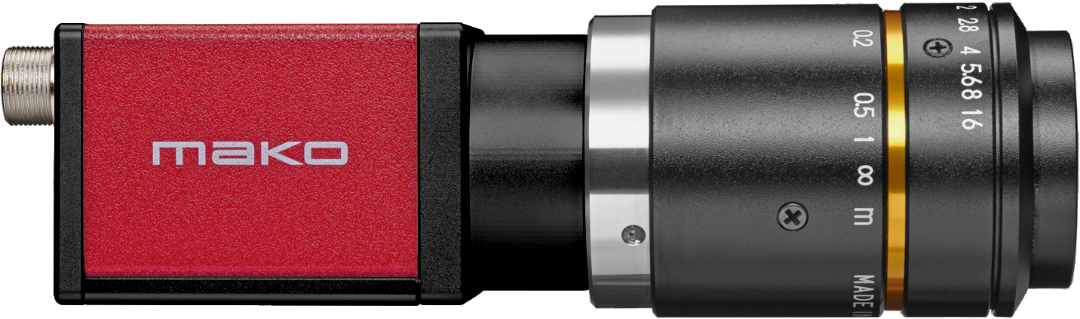

Mako G-223

常规

型号:	Mako G-223
产品系列:	Mako
状态:	Available

传感器

传感器类型:	Area scan
色度:	Mono or Color
光谱:	Visible
分辨率:	2,048 × 1,088 (2.20 MP)
传感器型号:	CMOSIS/ams CMV2000
传感器架构（材料）:	CMOS
快门类型:	Global Shutter
传感器尺寸:	12.75 mm ø (Type 2/3)
像素尺寸:	5.50 µm × 5.50 µm

像素格式

传感器位深度:	8-bit or 12-bit
单色像素格式:	Mono8, Mono12, Mono12Packed
YUV像素格式:	YUV411Packed, YUV422Packed, YUV444Packed
RGB像素格式:	RGB8Packed, BGR8Packed
拜耳像素格式:	BayerGB8, BayerGB12, BayerGB12Packed

成像性能

量子效率 @ 529 nm:

77 %

时序与增益

最大帧率:

49 fps

I/O与电源

光电隔离线路:	1 input, 3 outputs
电源供应:	10.8 to 26.4 VDC AUX or 802.3at Type 1 PoE
功耗:	2.4 W at 12 VDC; 2.8 W PoE

工作条件

工作温度（外壳:

5 °C to 45 °C (housing temperature)

机械特性

机身尺寸（L x W x H mm）:	61 × 29 × 29
重量:	80 g

板载内存与FPGA

图像缓存（RAM）:	64 MByte
非易失性存储器（闪存）:	1024 KByte

接口

数字接口:

IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)

数据表 (pdf)

GigE Vision camera, CMOSIS/ams CMV2000 CMOS sensor, 49.5 fps

分辨率

2,048 × 1,088 (2.20 MP)

帧率

49 fps

数字接口

IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)

Mako G-223 is a 2.2 megapixel GigE machine vision camera that incorporates the high quality Type 2/3 (12.7 mm diagonal) CMOSIS/ams CMV2000 CMOS sensor. At full resolution, this camera runs 49.5 frames per second. With a smaller region of interest, higher frame rates are possible.
