常规
| 型号: | Goldeye G-130 VSWIR TEC1 |
| 产品系列: | Goldeye G |
| 状态: | Available |
传感器
| 传感器类型: | Area scan |
| 光谱: | SWIR, Visible SWIR |
| 光谱范围: | 400 nm to 1700 nm |
| 分辨率: | 1,280 × 1,024 (1.30 MP) |
| 传感器型号: | Sony IMX990 | InGaAs | TEC |
| 传感器架构（材料）: | InGaAs |
| 快门类型: | Global Shutter |
| 传感器尺寸: | 8.15 mm ø (Type 1/2) |
| 像素尺寸: | 5.00 µm × 5.00 µm |
时序与增益
| 最大帧率: | 94 fps |
I/O与电源
| 非电气隔离IO: | 1 input, 1 output |
| 特定非电气隔离IO: | 115 200 Baud, 8N1 (adjustable) |
| 光电隔离线路: | 1 input, 2 outputs |
| 电源供应: | 10.8 V DC to 30.0 V or via PoE |
| 功耗: | Maximum: 10.8 W (at 12 VDC), <12.95 W (PoE) |
工作条件
| 工作温度（外壳: | -20 °C to 55 °C (housing) |
机械特性
| 机身尺寸（L x W x H mm）: | 78 × 55 × 55 |
| 重量: | 340 g |
板载内存与FPGA
| 图像缓存（RAM）: | 256 MByte |
| 非易失性存储器（闪存）: | 262 MByte |
接口
| 数字接口: | IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) |

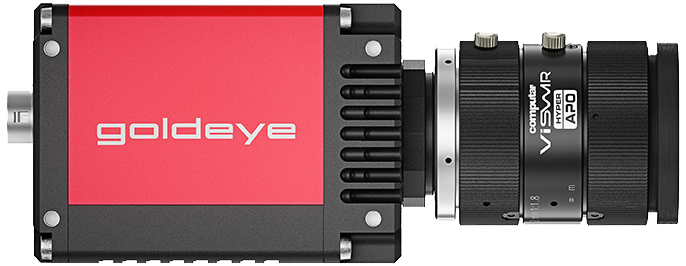

Goldeye G-130 VSWIR TEC1
分辨率
1,280 × 1,024 (1.30 MP)
帧率
94 fps
数字接口
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Goldeye G-130 TEC1 is a fast SXGA resolution short wave infrared (SWIR) camera with GigE Vision interface. Frame rates up to 94 fps at full resolution enable you to access versatile application fields and to speed up your processes.
