常规
| 型号: | Goldeye CL-034 XSWIR 1.9 TEC2 |
| 产品系列: | Goldeye CL |
| 状态: | Available |
传感器
| 传感器类型: | Area scan |
| 色度: | Mono |
| 光谱: | SWIR, eXtended SWIR |
| 光谱范围: | 1100 nm to 1900 nm |
| 分辨率: | 636 × 508 (0.32 MP) |
| 传感器型号: | Progressive scan 0.32 MP |
| 传感器架构（材料）: | cmos-ingaas |
| 快门类型: | Global shutter (GS) |
| 传感器尺寸: | 9.54 × 7.62 mm (12.2 mm, Type 1) |
| 像素尺寸: | 15.00 µm × 15.00 µm |
像素格式
| 传感器位深度: | 14-bit |
| 单色像素格式: | Tap geometry 1X 1Y: Mono8, Tap geometry 1X2 1Y: Mono8 |
时序与增益
| 最大帧率: | 303 fps |
| 曝光时间: | 1 µs to 20.00 ms |
| 增益: | 0.0 dB to 33.0 dB |
I/O与电源
| 非电气隔离IO: | LVTTL I/Os: 1 input, 1 output |
| 特定非电气隔离IO: | 115 200 Baud, 8N1 (adjustable) |
| 光电隔离线路: | 1 input, 2 outputs |
| 电源供应: | 10.8 V to 30.0 V |
| 功耗: | 21 W at 12 VDC |
工作条件
| 工作温度（外壳: | -20 °C to 55 °C ((housing)) |
机械特性
| 机身尺寸（L x W x H mm）: | 90 × 80 × 80 |
| 重量: | 740 g |
板载内存与FPGA
| 图像缓存（RAM）: | 256 MByte |
接口
| 数字接口: | Camera Link Base |

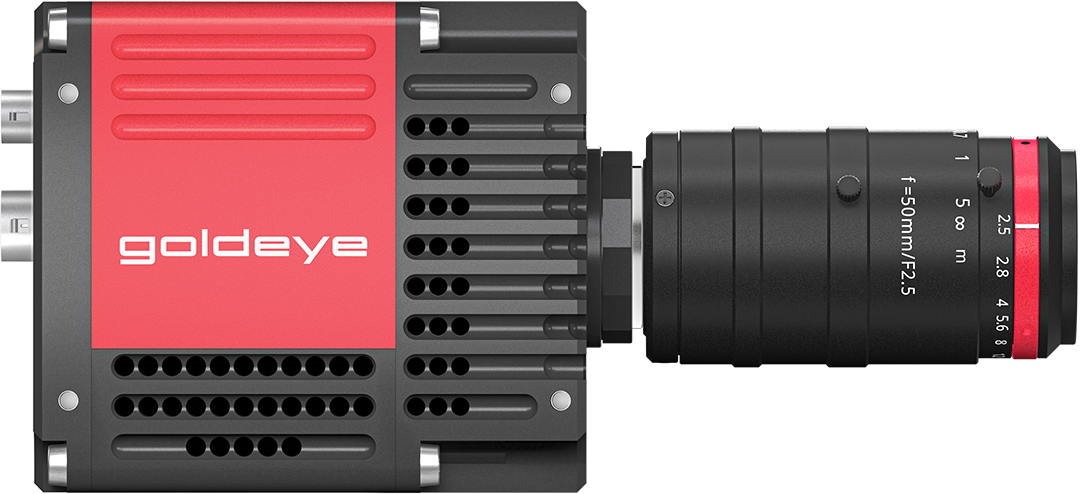

Goldeye CL-034 XSWIR 1.9 TEC2
Goldeye CL-034 XSWIR 1.9 TEC2 - High-speed VGA InGaAs camera
| 分辨率 | 636 × 508 (0.32 MP) |
|---|---|
| 帧率 | 303 fps |
| 数字接口 | Camera Link Base |
 |
Goldeye CL-034 XSWIR 1.9 TEC2 high-speed camera is the fastest VGA resolution extended short wave infrared camera (XSWIR) with GigE Vision interface. Frame rates up to 303 fps at full resolution enable you to access versatile application fields and to speed up your processes.
