常规
| 型号: | Goldeye CL-032 SWIR TEC1 |
| 产品系列: | Goldeye CL |
| 状态: | Available |
传感器
| 传感器类型: | Area scan |
| 色度: | Mono |
| 光谱: | SWIR |
| 光谱范围: | 900 nm to 1700 nm |
| 分辨率: | 636 × 508 (0.36 MP) |
| 传感器型号: | Progressive scan 0.36 MP |
| 传感器架构（材料）: | cmos-ingaas |
| 快门类型: | Global shutter (GS) |
| 传感器尺寸: | 15.9 × 12.7 mm (20.4 mm, Type 4/3) |
| 像素尺寸: | 25.00 µm × 25.00 µm |
像素格式
| 传感器位深度: | 14-bit |
时序与增益
| 最大帧率: | 100 fps |
| 曝光时间: | 6 µs to 200.00 ms |
| 增益: | 0.0 dB to 34.0 dB |
I/O与电源
| 非电气隔离IO: | LVTTL I/Os: 1 input, 1 output |
| 特定非电气隔离IO: | 115 200 Baud, 8N1 (adjustable) |
| 光电隔离线路: | 1 input, 2 outputs |
| 电源供应: | 10.8 V to 30.0 V |
| 功耗: | 10 W at 12 VDC |
工作条件
| 工作温度（外壳: | -20 °C to 55 °C ((housing)) |
机械特性
| 机身尺寸（L x W x H mm）: | 78 × 55 × 55 |
| 重量: | 340 g |
板载内存与FPGA
| 图像缓存（RAM）: | 256 MByte |
接口
| 数字接口: | Camera Link Base |

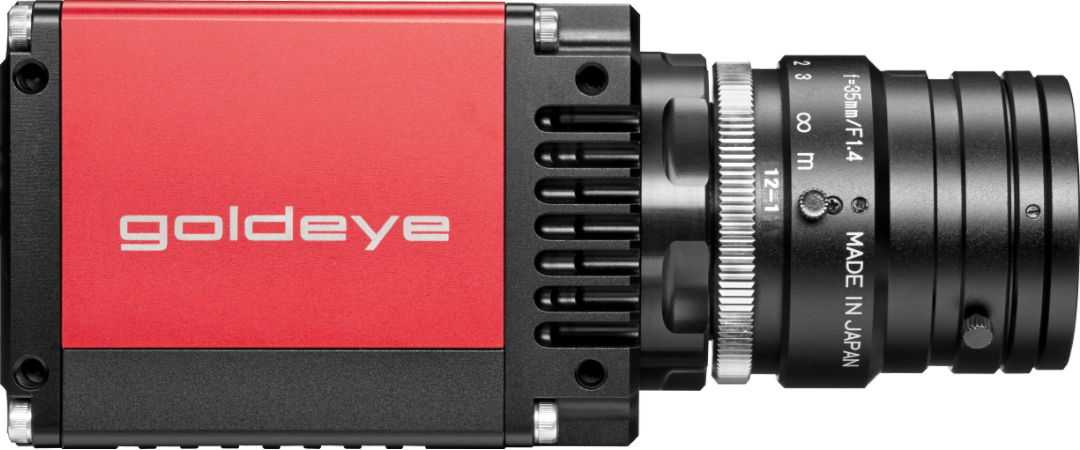

Goldeye CL-032 SWIR TEC1
Goldeye CL-032 TEC1- VGA InGaAs camera with large pixel
| 分辨率 | 636 × 508 (0.36 MP) |
|---|---|
| 帧率 | 100 fps |
| 数字接口 | Camera Link Base |
 |
The Goldeye CL-032 TEC1 is a very versatile SWIR camera for the spectral range from 900 nm to 1700 nm. High frame rates of 100 fps at full resolution (636 × 508), a strong sensor cooling, as well as a high intra-scene dynamic range of more than 73 dB enable to apply the camera in various application areas and
