常规
| 型号: | EoSens4.0MCX6-CM |
| 产品代码: | F006019 |
| 产品系列: | EoSens CoaXPress-6 |
| 状态: | Discontinued |
传感器
| 传感器类型: | Area scan |
| 色度: | Mono |
| 光谱: | Visible |
| 光谱范围: | 400 nm to 1000 nm |
| 分辨率: | 2,336 × 1,728 (4.00 MP) |
| 传感器型号: | Alexima AM41 |
| 传感器架构（材料）: | cmos |
| 快门类型: | global-shutter |
| 传感器尺寸: | 16.35 × 12.1 mm (20.34 mm, 4/3) |
| 像素尺寸: | 7.00 µm × 7.00 µm |
像素格式
| 传感器位深度: | 8-bit, 10-bit |
| 单色像素格式: | mono8, mono10 |
时序与增益
| 最大帧率: | 563 fps |
| 最大帧率 ROI模式: | 2336 x 1920 | 563 fps, 1920 x 1080 | 900 fps, 1024 x 768 | 1264 fps, 640 x 480 | 2020 fps, 128 x 128 | 7492 fps, x | 225000 fps, |
| 曝光时间: | 1 µs to 1 s |
| 增益: | 0.0 dB to 20.0 dB |
I/O与电源
| 非电气隔离IO: | 0 x LVDS input, 0 x LVDS output, 0 x TTL input, 0 x TTL output, 2 x 24V input, 0 x Open drain output, |
| 特定非电气隔离IO: | 0 x RS232 input, 0 x RS232 output, 0 x RS422 input, 0 x RS422 output, |
| 光电隔离线路: | 0 x Optical isolated input, 0 x Optical isolated input, |
| I/O接口: | 2 |
| 电源供应: | 12 to 24VDC, Power over CoaXPress |
| 功耗: | External: 10 W (typical) |
机械特性
| 机身尺寸（L x W x H mm）: | 60 × 80 × 80 |
| IP防护等级: | IP30 |
| 镜头接口: | C-Mount |
| 重量: | 500 g |
接口
| 数字接口: | cxp-6 with 4 connections |
| 接口连接器: | (Din1.0/2.3) |
固件功能 - 图像控制
| 曝光模式: | external |
| 增益模式: | analog |
| 白平衡模式: | true |
| 图像控制功能: | roi, mirror-image |
固件功能 - 相机控制
| 触发模式/同步: | external, trigger-over-cxp |

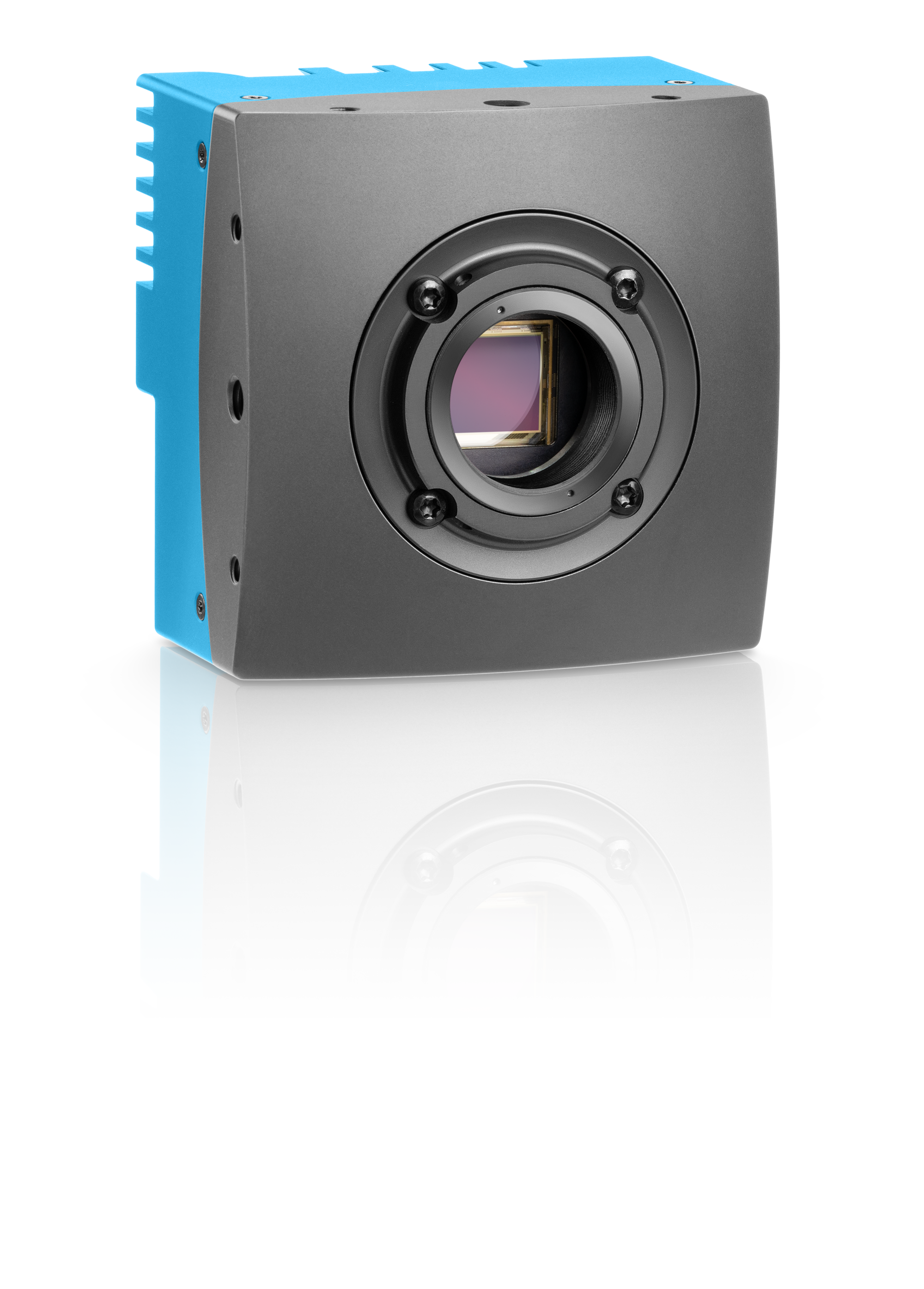

EoSens4.0MCX6-CM
分辨率
2,336 × 1,728 (4.00 MP)
帧率
563 fps
数字接口
CXP-6 with 4 connections
